6-Axis IMU with 3-Axis Accelerometer Gyroscope Stim300 Replacement

Name: 6Axis IMU with 3Axis Accelerometer Gyroscope Stim300 Replacement
Brand: Firepower
Price: 2000 USD

6-Axis IMU with 3-Axis Accelerometer Gyroscope Stim300 Replacement Manufactures

Brand Name : Firepower

Model Number : IMU6-1

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T,L/C

Supply Ability : 1000/month

Delivery Time : 7 days for sample

Packaging Details : carton with sponge

Price : 2000$

Gyroscope range : ±400°/s

In-Run Bias Stability : 0.3°/h

Bias stability @10s (10s smooth, 1σ, room temperature) : 3°/h

Bias stability in full temperature : 10°/h

Angular Random Walk : 0.15°/√h

Bias repeatability : 1°/h

3 dB Bandwidth : 250Hz

Voltage : 5V

Contact Now

Product Feature

MEMS inertial measurement unit consists of three-axis gyroscope, three-axis acceleration meter, three-axis inclination angle,temperature sensor, signal processing board, structure and necessary software, and is used for measuring the three-axis angular rate, the three-axis acceleration and the three-axis inclination angle of a carrier, And output the gyro, accelerometer and the inclination data after error compensation (including temperature compensation, installation misalignment angle compensation, nonlinear compensation and the like) through an RS-422 serial port according to an agreed communication protocol.

Main Technical Parameters

Gyroscope Specifications

Parameter	Unit	IMU6-1	IMU6-1A	IMU6-1B	IMU6-1C
Measuring range (customizable)	°/s	±400	±400	±400	±2000
In-Run Bias Stability(@ Allan variance)	°/h	0.3	0.1	0. 05	1
Bias stability @10s (10s smooth, 1σ, room temperature)	°/h	3	1	0.5	6
Bias stability in full temperature	°/h	10	3	2	18
Angular Random Walk	°/√h	0.15	0.1	0.02	0.3
Bias repeatability (1σ )	°/h	1	0.5	0.3	2
Bias acceleration sensitivity	°/h/g	1	1	1	2
Scale Factor Non-Linearity(1σ )	ppm	150	150	150	300
Scale Factor Repeatability (1σ )	ppm	20	20	20	100
Misalignment	°	±0.05	±0.05	±0.05	±0.05
3 dB Bandwidth	Hz	250	200	150	250

Accelerometer Technical Indicators

Parameter	Unit	IMU6-1y-1	IMU6-1y-2		IMU6-1y-3		IMU6-1y-4
Measuring range (customizable)	g	±10	±30		±50		±80
In-Run Bias Stability (Allan Variance @ 25 ℃)	mg	0.02	0.05		0.1		0.2
Bias stability @10s	mg	0.05	0.2		0.5		1
Bias stability in full temperature	mg	1	3		5		15
Angular Random Walk	m/s/√h	0.001	0.002		0.005		0.01
Bias repeatability(1σ )	mg	0.1	0.5		1		2
Scale Factor Repeatability (1σ )	ppm	200	200			200		200
Scale Factor Non-Linearity(1σ )	ppm	50		100		200		300
Misalignment	°	±0.05		±0.05		±0.05		±0.05
3 dB Bandwidth	Hz	100		100		100		100

Tilt Angle Specification (not Configured by Default, Optional)

Parameter	Unit	IMU6-1y-x
Measuring range (customizable)	g	±1.7
Bias stability (1s smoothing)	mg	0.5
Random walk	m/s/√h	0.08
Scale factor non-linearity	ppm	100

Electrical Characteristics

Parameter	Unit	IMU6-1y-x
Voltage	V	5
Power consumption	W	2
Ripple	mV	100

Environmental Adaptability

Parameter	Unit	IMU6-1y-x
Operating temperature	℃	-45~85
Storage temperature	℃	-55~105
Vibration	--	10~2000Hz,6.06g
Impact	--	1000g,0.1ms

Other

Parameter	Unit	IMU6-1y-x
Weight	g	55±5

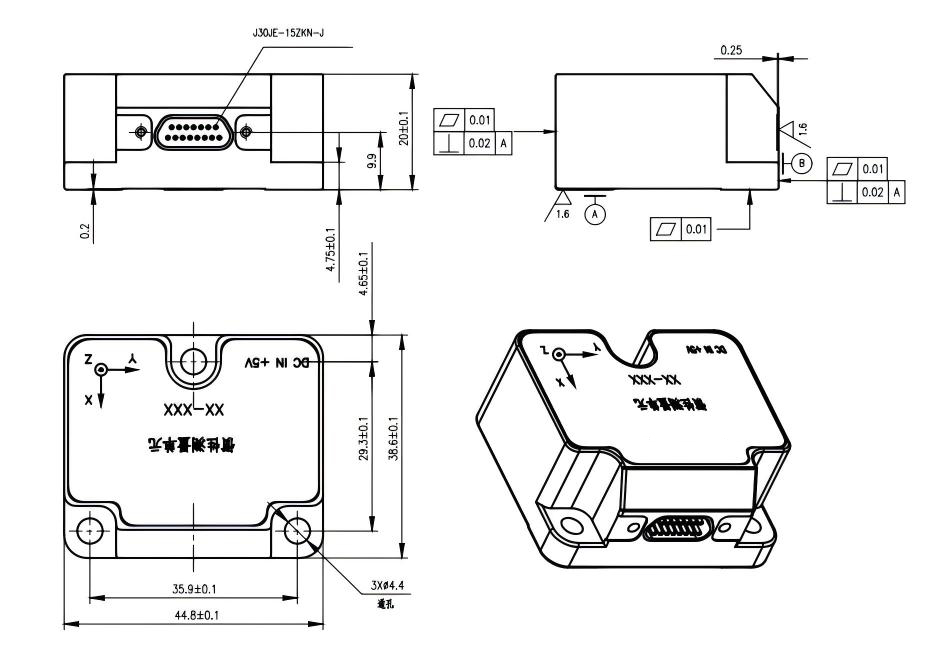

Outline Drawing

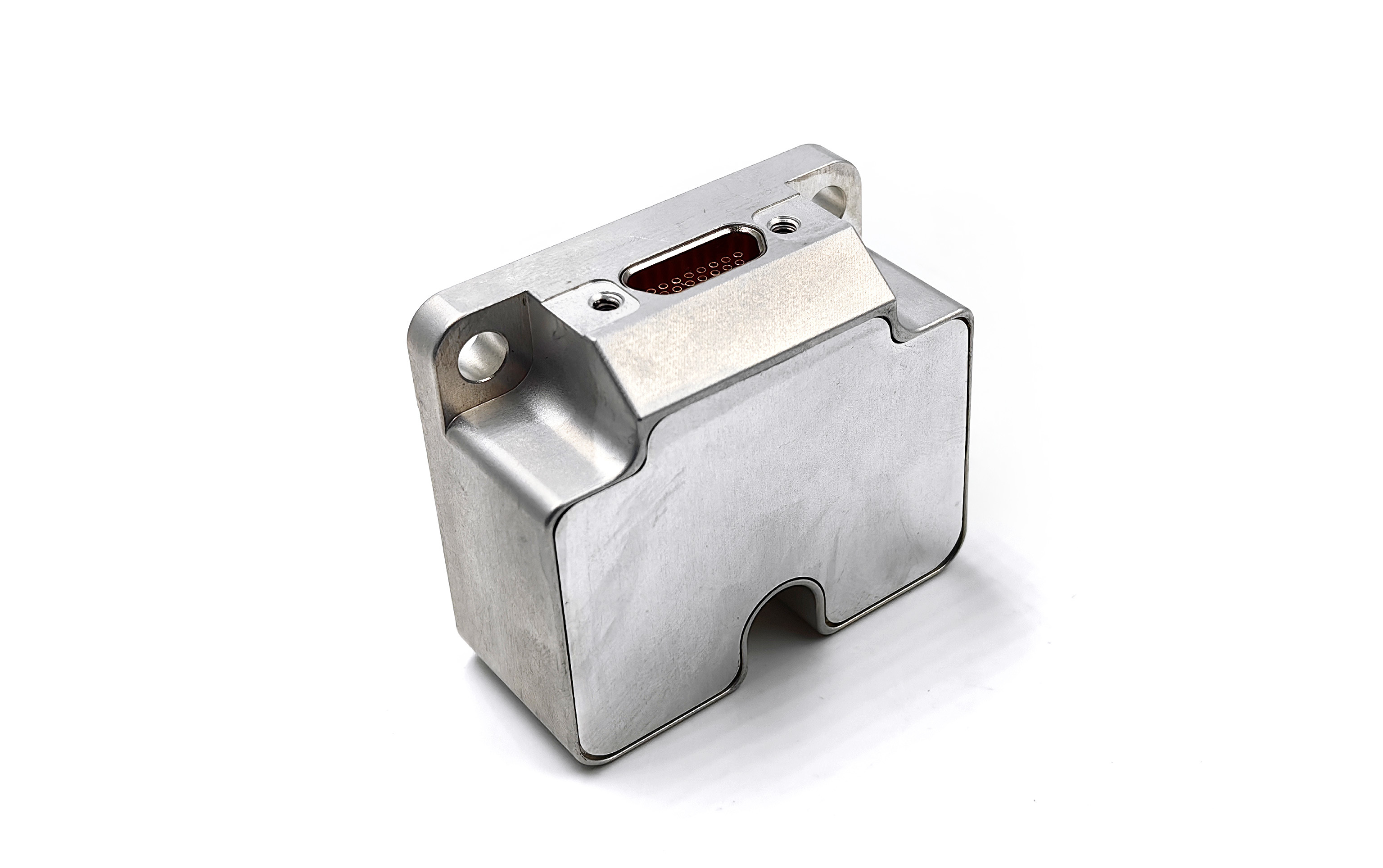

6-Axis IMU with 3-Axis Accelerometer Gyroscope Stim300 Replacement
