Three / Two Axis Angular Rate IMU Accelerometer Gyro Carrier Replace STIM210

Micro Gyroscope Assembly measuring the three-axis/two-axis angular rate of a carrier IMU replace STIM210

1.1.1 Gyroscope specifications

1. Measuring range: ± 400 °/s
2. Zero-bias stability (@ Allan variance): ≤ 1 °/H
3. Zero-bias stability (1s smooth, 1σ, room temperature): ≤ 10 °/H
4. Zero bias error within full temperature range: ≤ 20 °/H
5. Random walk: ≤ 0.2 °/√ H
6. Zero-bias repeatability: ≤10°/h
7. Zero bias acceleration sensitivity: ≤ 1 °/H/G
8. Resolution: ≤ 0.001 °/s
9. Scale factor nonlinearity: ≤ 100ppm
10. Repeatability of scale factor: ≤ 100ppm
11. Cross coupling: ≤ 0.1%
12. Bandwidth: ≤250Hz
13. Weight: (52 ± 5) G

1.1.2 Power supply requirements

1. Supply voltage: (+ 5 ± 0.5) V (DC);
2. Power supply current: working current < 0.3A;

1.1.3 Environmental adaptability

1. Working temperature: (-45 ~ 85) ℃
2. Storage temperature: (-55 ~ 105) ℃
3. Vibration: 10 ~ 2000Hz, 6.06g
4. Impact: 5000 G, 0.1ms

Outline drawing of micro gyroscope

Dimension

Pure IMU Accelerometer Gyro

CE IMU Accelerometer Gyro

100ppm IMU Accelerometer Gyro

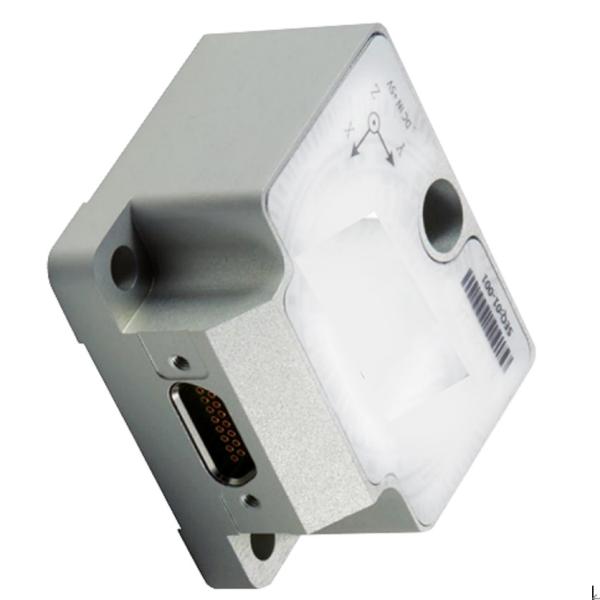

Three / Two Axis Angular Rate IMU Accelerometer Gyro Carrier Replace STIM210 Images
