Stable Performance Angular Velocity Sensor With 3 Axes For High Precision Usage

Name: Stable Performance Angular Velocity Sensor With 3 Axes For High Precision Usage
Brand: Firepower
Price: 1 USD

Stable Performance Angular Velocity Sensor With 3 Axes For High Precision Usage Manufactures

Brand Name : Firepower

Model Number : 3OG-98

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Supply Ability : 500/month

Delivery Time : 10 days

Packaging Details : sponge and carton

Measuring range : -500~+500°/s

Zero bias stability : ≤0.005°/h (10s smoothing)

Random walk coefficient : ≤0.0005°/√h

Supply voltage : +5V

Power consumption : ＜4W

Zero bias repeatability : ≤0.0015°/h

Scale factor nonlinearity : ≤10ppm

Scale factor repeatability : ≤10ppm

Dimensions : 60±0.1×60±0.1×28.0 ±0.1(L×W×H; mm)

Weight : ≤1500g

Contact Now

1. Product Overview
The 3-axis integrated Fiber Optic Gyroscope (FOG, Fiber Optic Gyroscope) is a high precision angular velocity sensor based on the principle of optical interference. It detects angular velocity by measuring the Sagnac effect generated when light propagates along the fiber optic ring and outputs precise attitude information. Compared to traditional mechanical gyroscopes, the FOG has the advantages of being frictionless, long-life, high-precision and shock-resistant, making it a core component in modern inertial navigation and attitude measurement systems.
The integrated three-axis design means that the gyroscope can measure the angular velocity in X, Y, and Z directions simultaneously, simplifying system integration and improving attitude measurement accuracy, which is widely used in aerospace, navigation, robotics, precision measurement, and other fields.

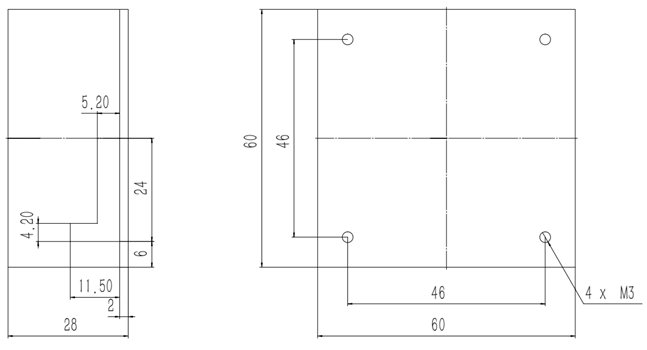

2. Dimensions

Stable Performance Angular Velocity Sensor With 3 Axes For High Precision Usage

3. Parameters

Serial number	Test item	Unit	Technical requirements
1	Start-up time	min	Power-on bias stability index
2	Zero bias stability at room temperature (constant temperature)	(°)/h	≤ 0.005 (10 s smoothing) ≤ 0.002 (100s smoothing)
3	Zero bias stability with temperature change (1 ℃/min variable temperature, 100 s average)	(°)/h	≤0.01
4	Zero-bias repeatability	(°)/h	≤0.0015
5	Random walk coefficient	(º)/h1/2	≤0.0005
6	Scale factor nonlinearity	ppm	≤10
7	Scale factor asymmetry	ppm	≤2
8	Scale factor repeatability	ppm	≤10
9	Scale factor repeatability (full temperature)	ppm	≤50
10	Operating temperature	℃	-40~+60
11	Storage temperature	℃	-50~+70
12	Dynamic range	(°)/s	±500
13	Supply voltage	V	+5V
14	Steady-state power consumption	W	< 4 (normal temperature) < 8 (full temperature)

4. Production environments

Stable Performance Angular Velocity Sensor With 3 Axes For High Precision Usage
